Description
This propelling charge is designated Zone 8 and extends the range of 155mm Howitzer M109A1, M109A2/A3, and M198.

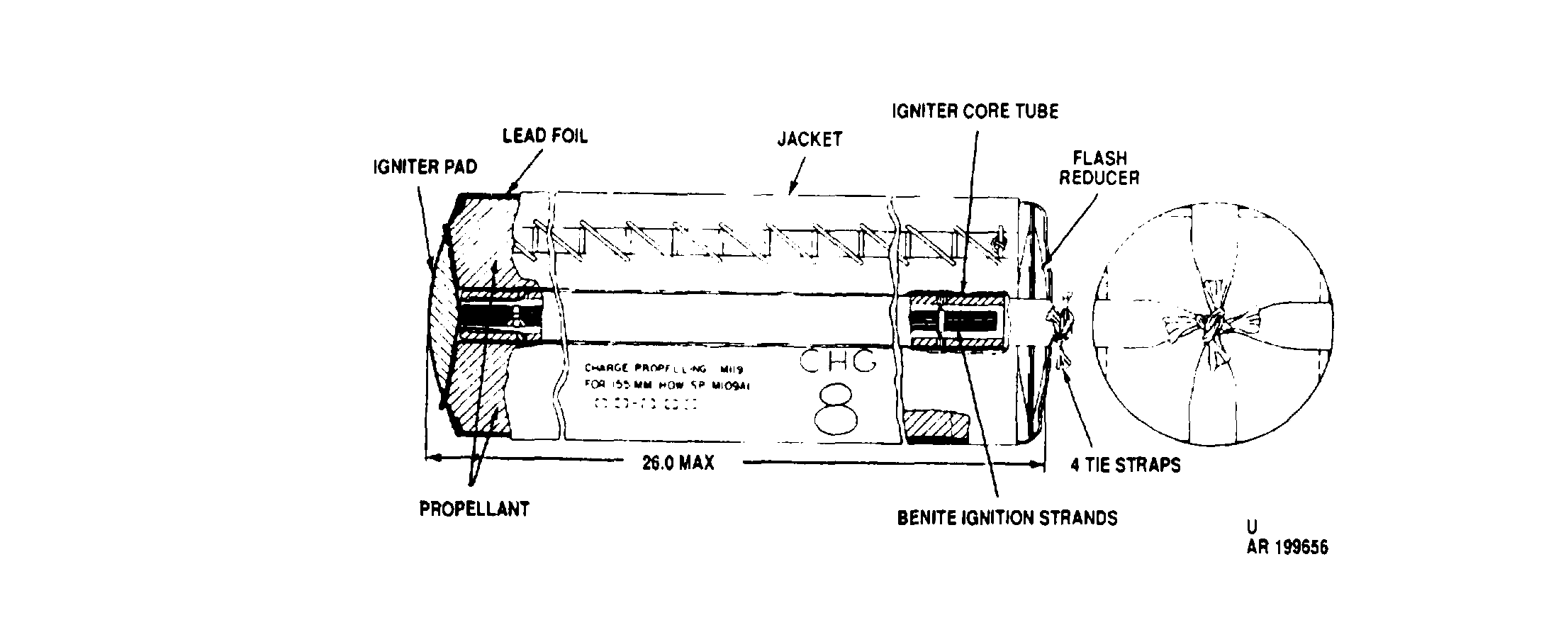

Propelling Charge M119/M119A1 is a single- increment white bag charge. A perforated igniter core tube extends through the center of the propellant. The 26-inch length of the charge precludes use in any other weapon than the long tube howitzer. The forward end is sheathed in lead foil and also carries a one pound flash reducer pad of potassium sulfate. A circular igniter pad of red cloth containing two ounces of clean burning igniter (CBI) is sewn to the base of the rayon propellant bag.
The basic difference between the M119 and M119A1 models is that the M119A1 has a donut shaped flash reducer that precludes nonignition of the rocket motor of the M549/M549A1 Projectile. The M119A1 has a new [?] center core igniter tube; a 360 degree basic igniter seam lacing jacket. A pull strap has also been added to the M119A1 charge that provides easier removal from the metal container.
Functioning
No information about functioning.
Hazardous Components
No information about hazardous components.
See Also
Projectile, 155mm HERA, M549, M549A1
Source(s)
TM 43-0001-28, Artillery Ammunition (chg 11, 2003)
