Description
This fuze is like the Auxiliary Detonating Fuze Mk 17 Mods 8-13, except for the dimensions and the fact that it has a pointed firing pin and a lead azide detonator, also an adapter and an additional booster pellet. This extra booster is required because of the long, narrow nose of the 5"/54 and 6"/47 DP projectiles, in which this fuze is used.

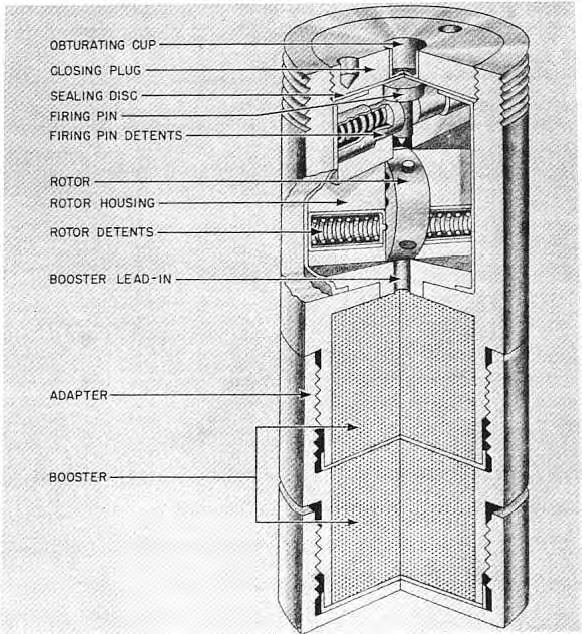

Mod 0 differs from Mod 1 in that the former has the two piece body as illustrated, and the latter has a one piece specially built body. The Mod 1 is the design which was produced in quantity.
Functioning
No information about functioning.
Hazardous Components
No information about hazardous components.
See Also
Nothing else to see.
Source(s)
OP 1664, Volume 1 - US Explosive Ordnance (1947)
